Fixed and mobile cGMP HMI · ISO Class 7–8 · Grade C–D
Two form factors, one platform. ID-View is the fixed wall-mounted monitor. ID-Flow is the mobile cart. Both are validated for ISO Class 7–8 and EU GMP Grade C to D. Both are 304L stainless, ingress protection rated, and browser-based for MES, LIMS and EBR at the point of work.
Trusted by the world's leading regulated manufacturers
The range
Kinetic-ID supplies cleanroom HMI in two form factors: a wall-mounted monitor and a mobile cart. Both are validated as a Grade C–D HMI for ISO Class 7–8 EU GMP environments. Both use 304L stainless, ingress protection rated, with the same integration stack. The decision is mostly about operator workflow, not capability.
ID-View and ID-Flow are both cleanroom computer equipment validated for the same ISO classes and cleaned with the same protocols. The decision is mostly about where the operator sits: fixed station goes to ID-View, moving between process steps goes to ID-Flow. Same compliance pack applies to either.
Fixed HMI
A sealed stainless steel monitor, ingress protection rated, available in several screen sizes with either a wall bracket or a pivot arm. Pick this when the operator station is permanent, such as a fill line, an inspection bench or a packaging hall.
ID-View specifications
| Monitor sizes | 21.5" · 24" · 27" |
|---|---|
| Enclosure rating | Ingress protection rated |
| Stainless steel | 304L |
| Surface roughness (Ra) | ≤ 0.8 µm |
| Cleanroom classification | ISO 7–8 · EU GMP C–D |
| Mount | VESA 100 · wall or pivot-arm |
| Wireless | Wi-Fi 6 (802.11ax) |
Mobile HMI

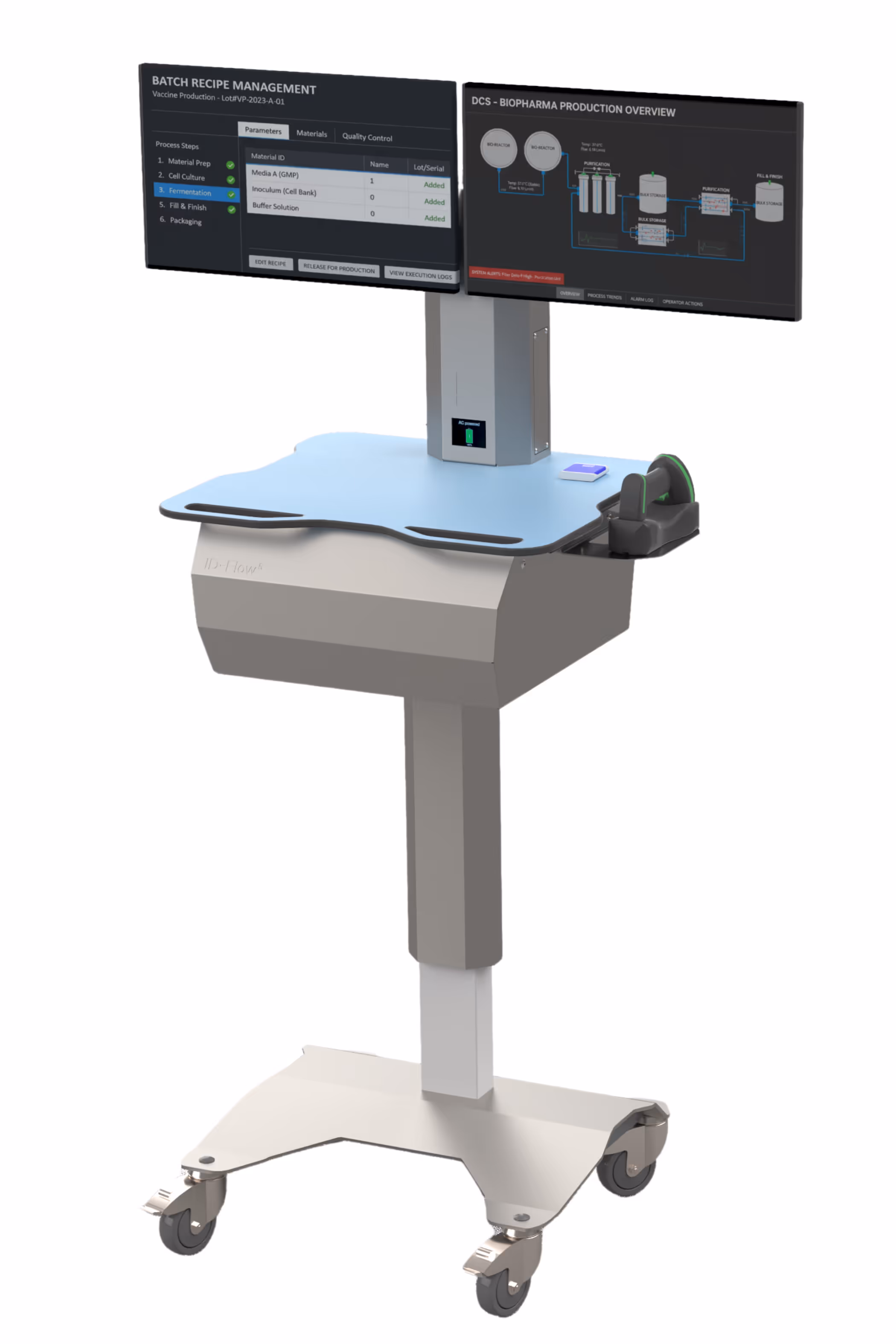

A mobile HMI cart with hot-swap batteries and a single or dual 24" screen setup. Pick this when the operator moves to the process, including batch production, sampling rounds and troubleshooting that doesn't fit one fixed location.
ID-Flow specifications · cleanroom computer workstation
| Dimensions (H × W × D) | 1180 × 640 × 560 mm |
|---|---|
| Chassis weight | Dependent on configuration |
| Stainless steel | 304L |
| IP rating | Ingress protection rated |
| Cleanroom classification | ISO 7–8 · EU GMP C–D |
| Battery | Li-ion 500 Wh, hot-swap |
| Runtime per charge | 8–12 hours |
| Screens | Single or dual 24" |
| Wireless | Wi-Fi 6 (802.11ax) |
Standard chassis dimensions and configuration shown for both ID-View and ID-Flow. Every unit is built to specification — dimensions, materials, battery, screens and peripherals are configured per deployment. Confirmed values issued at quotation.
Fully customizable
Cleanroom grade, stainless finish, battery, screens, peripherals and integrations, all configured to your specification. Full IQ/OQ/PQ documentation packages available on request.
Why Kinetic-ID
Not retrofitted from medical or office hardware. Engineered specifically for cGMP, GMP, and ISO Class environments.
Lithium battery system — two 500 Wh packs designed for continuous shift operation. Battery exchange in approximately 5 minutes, planned around natural workflow breaks.
Active deployments across Emerson DeltaV, Werum PAS-X, LabVantage, Siemens Opcenter, Rockwell FactoryTalk, and more.
Material certificates, welding procedure specifications, and validation documentation issued with every unit.
Get an ID-Flow unit into your cleanroom for evaluation before committing to a deployment.
NHS fleets in continuous service since 2019. 5-year Kinetic-Power warranty. Designed for decade-plus operational lifespans.
The problem
Every walk to a fixed MES terminal risks a transcription error and delays the batch. Operators lose 20–40 minutes per shift to the commute.
Paper-to-system transcription is the most-cited deviation source in FDA 483 letters. Each manual step is a CAPA risk.
Without floor-level visibility, QC and engineering see deviations only after the batch record is compiled, hours or days after they could have been corrected.
Hygienic design
ID-View and ID-Flow share the same hygienic design principle: a smooth, welded stainless steel envelope with no exposed fasteners or inset seams. Particulates and solvent residue have nowhere to settle that an operator can't wipe. Every external surface is cleanable in one pass.
The envelope is continuous-welded 304L stainless with surface roughness Ra ≤ 0.8 µm. Corners are rounded and the top slopes, so particulates have nowhere to settle.
Your existing cleaning protocols will work: IPA, hydrogen peroxide, peracetic acid, quats. If you need material traceability documentation for validation, we issue it on request.
Designed against the EU GMP Annex 1 requirements for fixed equipment in controlled and aseptic environments. If you want support building this into your contamination control strategy for PQ, we can help.
Case study
Active deployment across US life sciences sites integrating with Emerson DeltaV and Syncade.
Life Sciences
· ID-Flow 3, 5, 6 and 9
4
ID-Flow variants deployed across US life sciences sites
316L
fully sealed watertight stainless developed for this customer
DeltaV
+ Syncade · Emerson MES and DCS integration
With Kinetic-ID, you get exactly what you want, and they will focus it to your needs on a practical level.
ROI calculator
* Directional estimates based on operations expertise. Use your internal numbers for precision. Weeks/month: 4.33. Working days/week: 5. Maintenance defaulted to €250/cart/year from year 3. 3-year analysis period.
Integrations
Browser-based access to MES, LIMS, eBR, DCS and corporate IT. The same chassis serves as an MES HMI, a LIMS terminal, or a DCS console depending on the shift. No new network segments, no cloud dependencies.
Compliance
Every ID-Flow 5 ships with the documentation your validation and QA teams need to clear change control and internal review.
Validation support: IQ/OQ/PQ documentation packages issued with every deployment. Change control and revision tracking supported per ICH Q9 risk management. Low particle-shed design suited to ISO Class 7–8 / EU GMP Grade C–D environments.
Deployment process
30 minutes. One site, one line, one application. We’ll recommend the right configuration.
Site survey, configuration spec, validation requirements signed off with your team.
A single unit on site for typical 30-day evaluation. Full validation support throughout.
Standard 6–8 week build, IQ/OQ/PQ documentation, 5-year Kinetic-Power warranty, ongoing support.
The range
ID-Flow 5 is one of six variants. Pick the form factor that fits your grade, battery architecture, and operator workflow, then configure every detail to your spec.

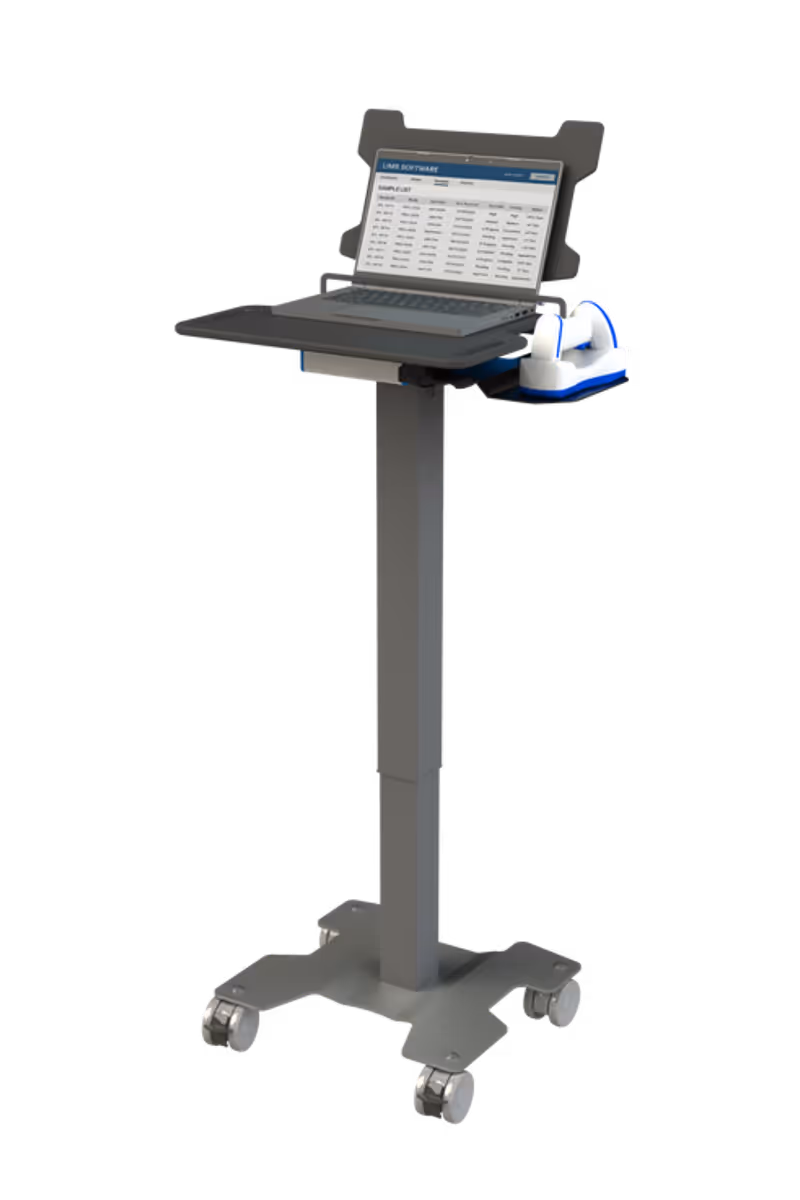

Lightweight laptop cart for support and non-regulated areas.

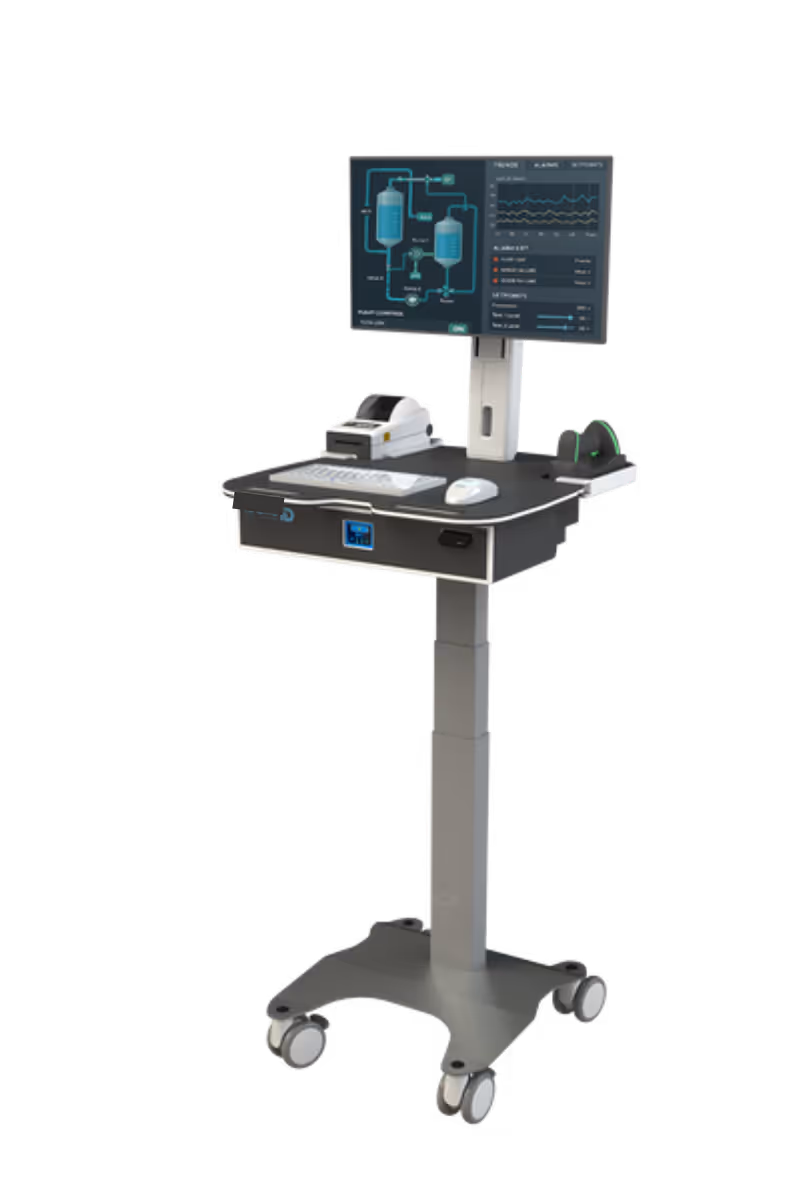

For labs, packaging and receiving. 250 Wh or 500 Wh fixed internal battery.
This page

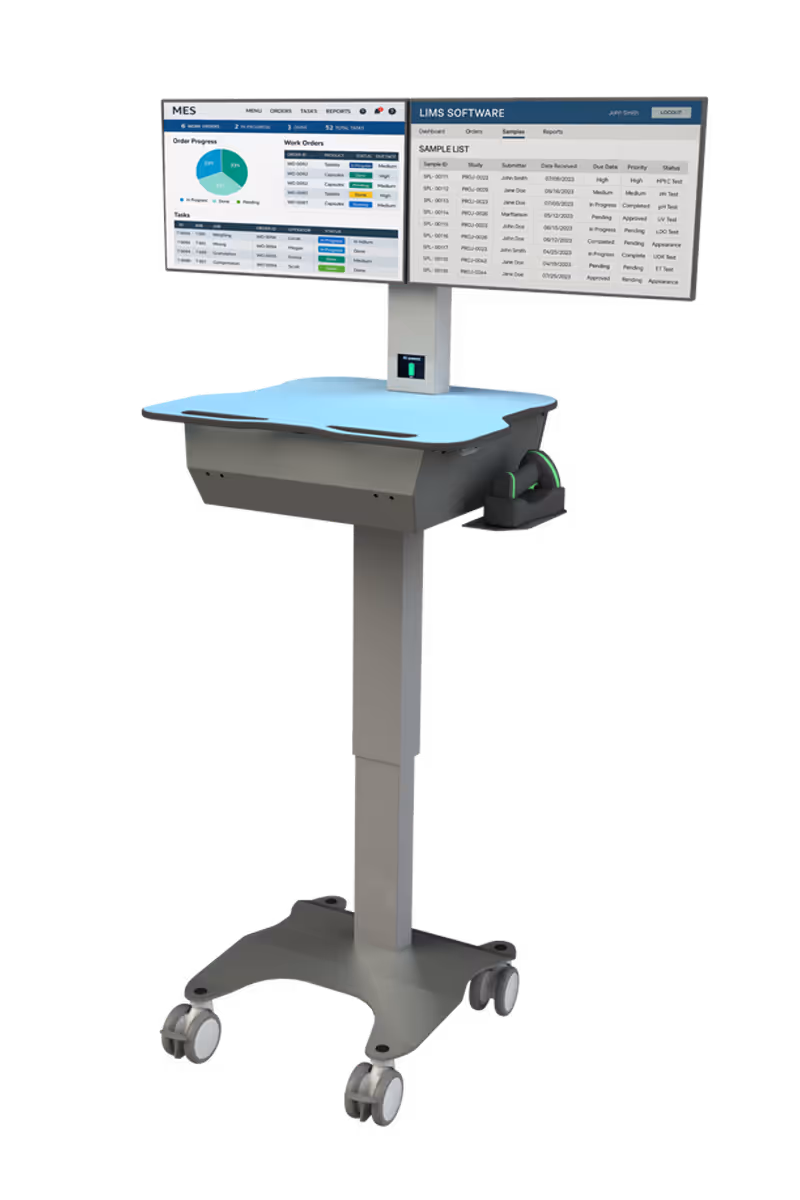

Hot-swap batteries and flexible screen orientation. Single or dual monitor.

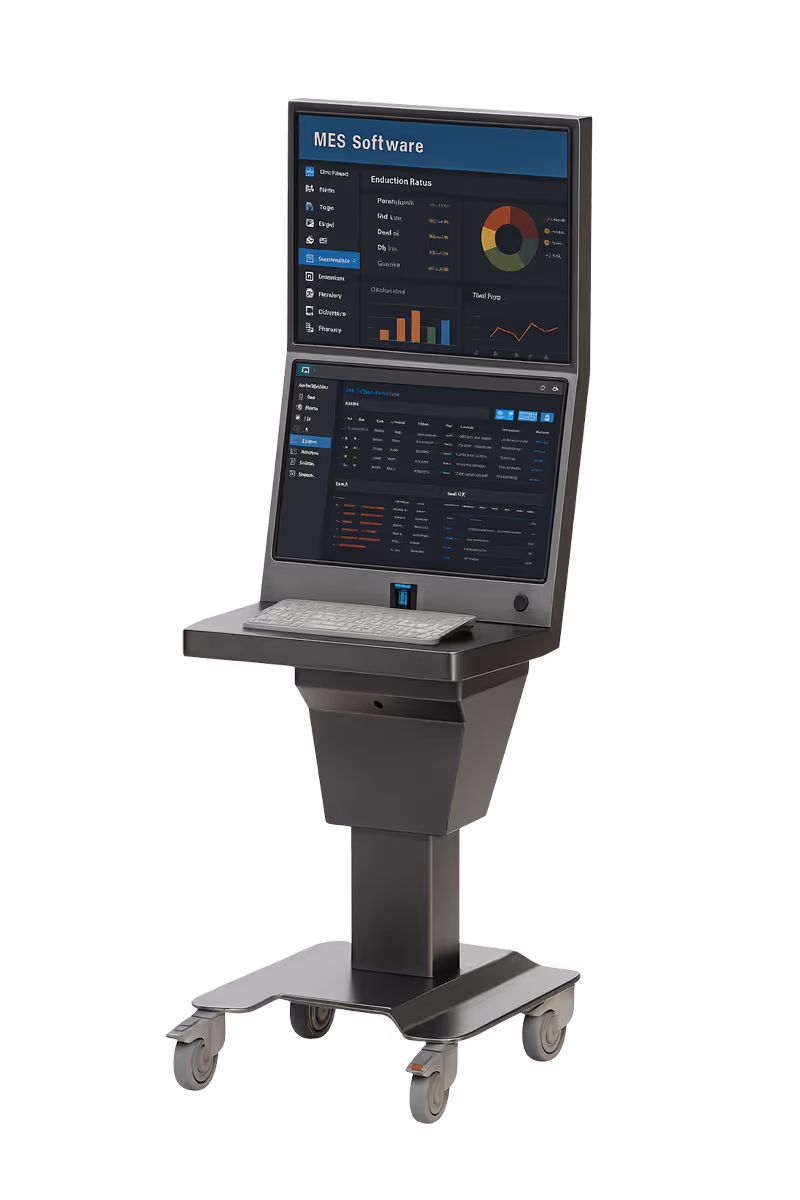

Electronically height-adjustable. Hot-swappable batteries. Dual-monitor.

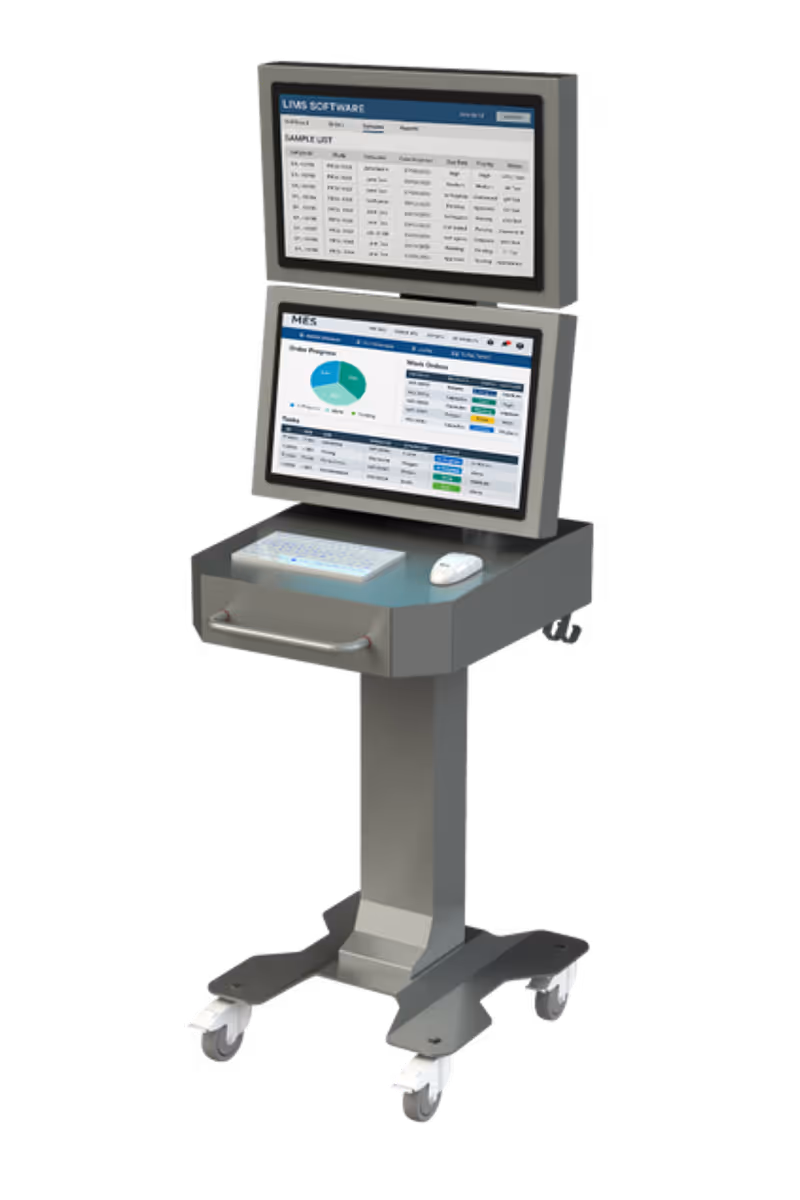

316L stainless, fully sealed and watertight. Dual vertical monitors. For critical Grade A zones.
This page
Wall or floor-mounted HMI. For space-constrained cleanrooms.
For your team
For Operations
Faster deviation response. No operator hours lost walking to fixed terminals. Battery system designed for continuous shift operation; two 500 Wh packs, planned battery exchange around natural workflow breaks.
For Quality
Reduced transcription risk. Change control is audit-ready. IQ/OQ/PQ documentation ships with every unit.
For Engineering
Supports your existing MES, LIMS, eBR and corporate IT. No new network segments to approve.
For IT / OT
TPM-backed endpoints. Validated Wi-Fi 6 stack. AD/SSO integration. No third-party cloud dependency.
Pilot programme
Get an ID-Flow unit on site to evaluate against your operational and validation requirements. Typical pilots run around 30 days, though we’ll work with your team on the right timeline. Site survey, setup support and IQ/OQ documentation included.
Pre-deployment review of cleanroom grade, network, peripheral requirements.
On-site configuration, operator walkthrough, validation support.
Full validation pack issued for change control review.
FAQ
Choose ID-View (fixed) when the operator has a dedicated station, such as aseptic processing lines, fill-finish operations, or permanent inspection points. Choose ID-Flow (mobile) when operators move between multiple process steps or need point-of-work access during batch rounds, sampling or troubleshooting. Many facilities deploy both. The consultation includes a site-layout review to confirm the right mix.
ID-Flow 5 is suitable for ISO Class 7 and Class 8 environments per ISO 14644-1, equivalent to EU GMP Grade C and Grade D. The 304L stainless chassis, ingress protection rated enclosure and low particle-shed construction support cleanroom validation. Site-specific validation is supported by IQ/OQ/PQ documentation packages issued with every deployment.
Active deployments of the mobile HMI (ID-Flow) exist with LabVantage, STARLIMS, LabWare and Thermo SampleManager. Integration is browser-based over Wi-Fi 6. For the fixed HMI (ID-View), LIMS has not been formally validated as a pre-configured package; it is compatible via the same browser-based access but customer validation applies. Kinetic-ID does not host or process LIMS data. Audit trails stay inside your existing systems, compatible with 21 CFR Part 11 and EU Annex 11.
The cart uses two 500 Wh Li-ion battery packs. Battery exchange takes approximately 5 minutes and requires removing access screws from the underside of the cart. Plan exchanges for shift changes or natural workflow breaks rather than mid-task — the brief operational pause is best treated as a scheduled handover rather than an interruption.
Standard configurations ship in 6–8 weeks from order confirmation. Custom configurations (specific peripheral bundles, branded fascia, non-standard screen sizes) add 2–4 weeks. Every unit ships with IQ/OQ documentation and a validated delivery file.
Yes. Get an ID-Flow unit on site to evaluate against your operational and validation requirements. Typical pilots run around 30 days, though we’ll work with your team on the right timeline. Site survey, setup support and IQ/OQ documentation are included.
ID-Flow 5 is specified for Grade C and Grade D environments. For Grade A or B aseptic processing zones, look at ID-Flow 9 — fully sealed 316L stainless built specifically for critical zones. We can recommend the right product based on your room classification.
One site, one line, one pain point. We'll tell you whether the ID-Flow 5 fits, and give you the validation documentation you'd need to defend the decision.
The full ID-Flow range, cleanroom grades, IP ratings, battery architectures, and IQ/OQ/PQ validation support.
